Bubble CPAP for Prevention of Chronic Lung Disease in Premature Infants

Bubble CPAP is a non-invasive air flow method for newborns with little one respiration misery syndrome (IRDS). It is one of the strategies with the aid of using which non-stop high quality airway pressure (CPAP) is introduced to a spontaneously respiration new child to preserve lung volumes at some point of expiration.


The discovery of surfactant become one of the maximum massive activities to arise withinside the records of neonatology. Certainly, surfactant stored lives for untimely babies who have been in any other case taken into consideration nonviable. However, the prevention of persistent lung disease (CLD) did now no longer progress, and it have become clean that a massive part of the assist surfactant affords to the untimely lung is counteracted through mechanical ventilation.

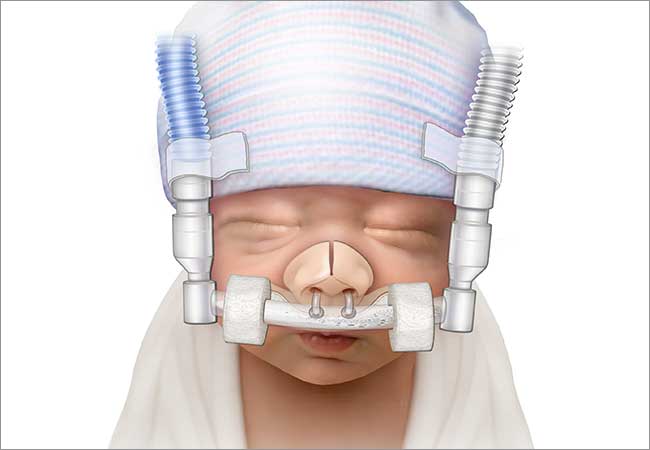

Since its creation over 30 years ago,1  BCPAP has emerge as an essential a part of the control of neonatal respiration misery syndrome. Similar to “ventilator-derived” or “machine-derived” CPAP gadgets, bubble CPAP gadgets practice stress to the neonatal respiration gadget thru nasal prongs positioned into the infant’s nostrils, forming a decent seal to reduce leak.

On the alternative hand, bubble CPAP gadgets are a lot easier than ventilator-derived CPAP, regularly consisting best of humidified bias float being added into the inspiratory limb, and the CPAP stage set primarily based totally on the space the expiratory limb of the circuit is submerged right into a water seal chamber.

The simplicity of this gadget makes it appealing to many centers, in particular resource-restrained neonatal gadgets in growing countries

How the apparatus works

The Bubble CPAP equipment is simple; it’s miles composed of a respiration circuit with an inspiratory limb turning in heated humidified fueloline aggregate to the toddler and an expiratory limb immersed below water in a field to create the favored strain. Gas go with the drift generates bubbles below the water that reason oscillations of the water stage and in the end of the strain added to the affected person. Therefore, the affected person on b-CPAP gets an oscillating in preference to a regular strain. This oscillation impact may also upload to the efficacy of b-CPAP in extent recruitment.

CPAP has a couple of physiologic advantages. In spontaneously respiration untimely infants, it eases respiration efforts via way of means of stenting the airway and the diaphragm. It keeps alveoli inflated, will increase the purposeful residual capability of the lung, and optimally fits air flow with perfusion.

Compared with mechanical air flow and tracheal intubation, CPAP minimizes volutrauma and next biotrauma. CPAP induces a positive stress that stimulates lung increase while administered to animals over a extended time.

Multiple randomized managed trials had been released to evaluate the efficacy of early nasal CPAP to mechanical ventilation. These trials did now no longer specify b-CPAP, however alternatively used any sort of CPAP and did now no longer provide information of competency-primarily based totally education to make certain its efficacious use. Despite those reservations, trials showed the feasibility of making use of CPAP early in existence to untimely infants, consisting of the ones at the acute untimely age of 24-25 weeks, with out alternate in mortality and CLD.

When those trials have been taken into consideration together in a current meta-analysis, early use of CPAP had a marginal gain for the composite final results of survival with out CLD whilst in comparison to prophylactic surfactant with intubation. These findings do now no longer reconcile with ordinary reviews on massive discount of CLD in neonatal gadgets that used b-CPAP.

There are elements that might give an explanation for the decreased CLD in b-CPAP devices. The first is the kind of CPAP and the kind of nasal prongs. The 2nd is the competency of the caregiver the use of b-CPAP on the bedside. Therefore, b-CPAP method is a entire package deal of care that calls for clean exercise pointers and education process. In an attempt to assist neonatal devices reproduce b-CPAP success, we provide a hands-on education application that familiarizes workforce with b-CPAP components, warning signs for use, approach of application, take a look at factors for maintenance, troubleshooting of problems, weaning techniques and standards for b-CPAP failure.


1.Aly H, Mohamed MA, Wung JT. Surfactant and non-stop high quality airway strain for the prevention of persistent lung disease: History, reality, and new challenges. Semin Fetal Neonatal Med. 2017;22(5):348-353.

  1. Aly H, Mohamed MA. Bubble non-stop high quality airway pressure. In: MacDonald MG, Ramasethu J. Eds. Atlas of Procedures in Neonatology. fifth Philadelphia, PA. Lippincott, Williams & Wilkins, 2012.

3 .Aly H. Nasal prongs non-stop advantageous airway pressure: a easy but effective tool. Pediatrics 2001;108(3):759-761.

All-in-One Device

The B&B Bubbler from B&B Medical Technologies.

New to the marketplace is the B&B Bubbler, a bCPAP tool that acquired 510(k) approval from the FDA in March, in keeping with Stu Novitz, B&B Medical’s vice chairman of income and marketing. Designed with enter from a focal point institution comprising clinicians, nurses, neonatologists, and different scientific professionals, the tool represents a brand new shape in bCPAP.
